CURRENT POSITION:HOME PAGE>PRODUCTION LIST>Granulation & Coating>Fluidized Bed Coating machine( CE )
2.Process flow：
2.1Wet Mixing Granulation + Fluidized bed drying + Fluidized bed Coating
2.2.Rotary granulation + polish + Fluidized bed drying+ Vibrating screen seperate+ Fluidized bed Coating
2.3.Swing granulation +polish + Fluidized bed drying+ Vibrating screen seperate+ Fluidized bed Coating
2.4.Dry powder rolling compacting granulation + Fluidized bed Coating
3.Technical Data
Specification |
3 |
5 |
15 |
30 |
60 |
90 |
120 |
200 |
300-1000 |
|||
Capacity |
kg/batch |
3 |
5 |
10-20 |
25-40 |
40-80 |
50-90 |
80- |
150- |
To be designed according to |
||
Container voiume |
L |
12 |
22 |
50 |
100 |
220 |
300 |
420 |
650 |
|||
Power of fan |
Kw |
4 |
4 |
7.5 |
7.5 |
15 |
18.5 |
18.5 |
22 |
|||
Noise |
db |
No more than 75db Separated of fan |
||||||||||
Compressed air |
Pressure |
Mpa |
0.6 |
|||||||||
Consumption |
M3/min |
0.4 |
0.4 |
0.6 |
0.9 |
1.3 |
1.3 |
1.1 |
1.1 |
|||
Steam |
Pressure |
Mpa |
0.4-0.6 |
|||||||||
Consumption |
Kg/h |
|
|
64 |
85 |
181 |
210 |
250 |
330 |
|||
Power of electrical heater |
Kw |
9kw |
6kw |
按用户要求设计By client |
||||||||

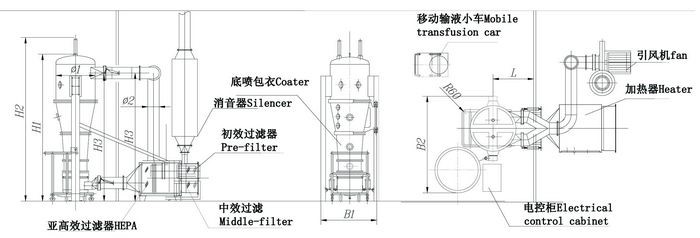

Size of installation for reference |
H1（mm） |
|
|
2870 |
3150 |
3250 |
3400 |
3630 |
3890 |
|||
H2（mm） |
2600 |
2600 |
3230 |
3620 |
3720 |
3870 |
4100 |
4360 |
||||
H3（mm） |
2410 |
2410 |
2545 |
2930 |
3020 |
3160 |
3390 |
3600 |
||||
B1（mm） |
770 |
960 |
1169 |
1460 |
1660 |
1760 |
2060 |
2260 |
||||
B2（mm） |
1170 |
1510 |
1860 |
2460 |
2860 |
1960 |
3660 |
4060 |
||||
L（mm） |
850 |
1000 |
1550 |
1700 |
1800 |
1800 |
2000 |
2100 |
||||
￠1 |
400 |
550 |
700 |
1000 |
1200 |
1300 |
1600 |
1800 |
||||
￠2 |
180 |
180 |
250 |
250 |
280 |
280 |
280 |
315 |
||||
Non-standard customization is acceptable
OEM is acceptable
