网带式干燥机 (CE)
Mesh Belt Dryer (Follow CE Rules)

Rake Dryer

1.概述Descriptions

本机是连续穿透式干燥设备,适用于干燥条带和颗粒状态材料,通风良好。 该机适用于脱水蔬菜,中草药等,不包括水分含量高,干燥温度高的材料。 该机具有干燥速度快,蒸发能力强,产品质量好的优点。 脱水滤饼状态糊料在干燥过程中应制成颗粒或条状。
This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.
2.原理Principle

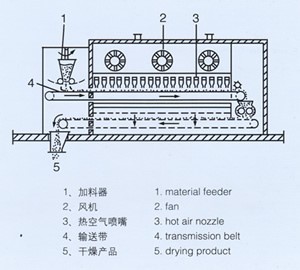

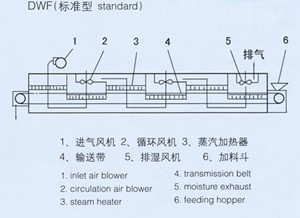

belt dryerbelt dryer

物料通过物料进料器均匀分布在网带上。 网带一般采用12-60目不锈钢网,由传动装置拉出,在干燥机内移动。 烘干机由几段组成。 对于每个部分,热空气分开循环。 一部分湿气通过特殊的排气鼓风机排出。 废气由调节阀控制。 热空气穿过网带带走水分。 网带运动缓慢,运行速度可根据材料性质自由调整。 干燥过程后的最终产品将不断落入材料收集器。 顶部和底部循环单元可根据用户要求自由装配。 可根据生产需要选择节数。热源也可以选择热泵加热。

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands. heat source can be heat pump .
3.应用Applications

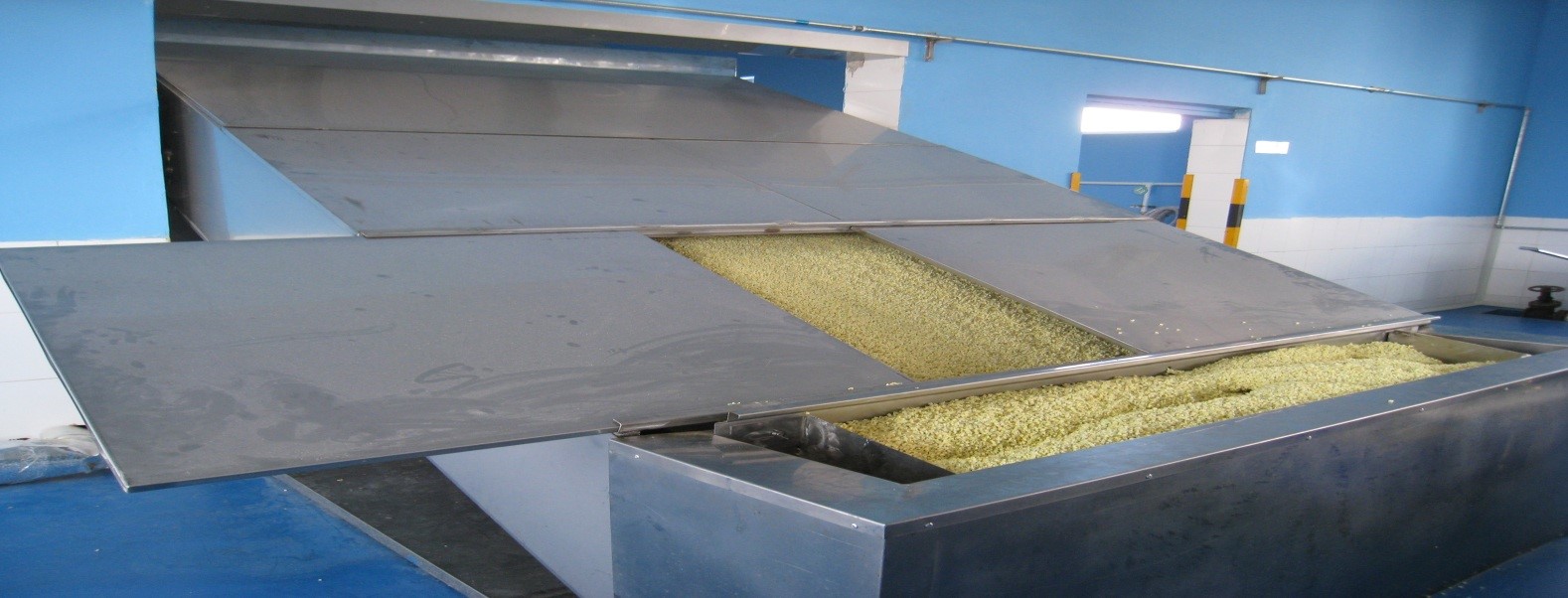

mesh belt dryer

脱水蔬菜,颗粒饲料,美味粉末,椰丝馅,有机颜料,复合橡胶,中成纤维,药品,医药材料,小木制品,塑料制品,老化和固化用于电子元件和装置。
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
4.技术参数Technical Parameters

spec

DW-1.2-8

DW-1.2-10

DW-1.6-8

DW-1.6-10

DW-2-8

DW-2-10

unit number

4

6

4

4

6

belt Width
m

1.2

1.2

1.6

1.6

2

2

drying section Length
m

8

10

8

10

8

10

Thickness of the material
mm

10-80

Temperature ℃

60-130

steam Pressure Mpa

0.2-0.8

steam Consumption Kgsteam/KgH2O

2.2-2.5

drying strength KgH2O/h

6-20kg/m2.h

total power of blower Kw

3.3

4.4

6.6

8.8

12

16

total power of equipment KW

4.05

5.15

7.35

9.55

13.1

17.1

蔬菜专用机Specialized machine for vegetable

unit

three units series specialized machine for vegetable

five layers specialized machine for vegetable(Frame type)

model

DWP-2-10-3

DWF-2-10-3

DW5-3-12

effective belt width

m

2

2

3

effective belt length

m/unit

10

10

12

tandemquantity

3

3

layers

5

vegetable capacity

kg/h

600

720

2000

evaporate strength

kg/h

400-510

480-640

1440-1800

consumption of steam

Kgsteam/KgH2O

2.2-2.5

2.2-2.5

2.2-2.4

heat radiation area

m2

900

1440

2600

total power of the machine

kw

70

52

150

overall size

m

33.2×2.58×2.8

33.2×2.27×2.85

15.3×4.3×8.5

heat source type

steam, theermal conductivity oil, hot air furnace, electric

带式干燥机颜料带式干燥机

饲料专用机(框架型)Specialized machine for feed (frame type)

Specialized machine for feed (frame type)

model

unit

DWZ-3×12

effective belt width

m

3

effective belt length

m/unit

12

using temperature

80-130

pressure of steam

Mpa

0.4-0.8

drying time

min

35-50

thickness of material

cm

5-8

drying strength

kg/h

6-20

consumption of steam

Kgsteam/KgH2O

2-2.4

total power of the machine

kw

76

overall size

m

15.1×4.3×3.4

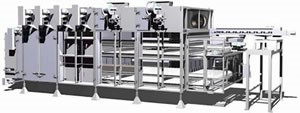

多层带式干燥机
