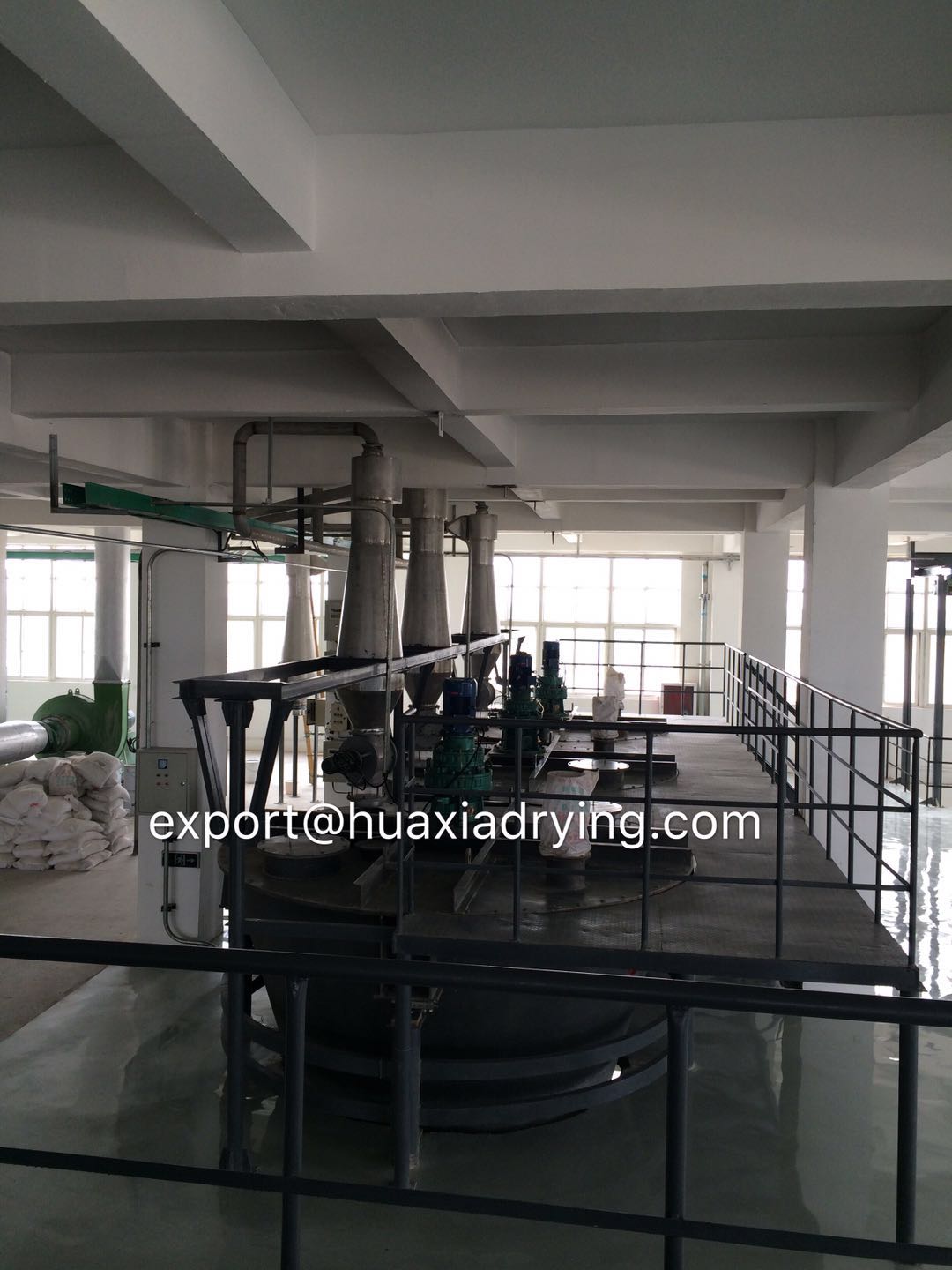

双螺旋锥形混合机（CE）
Double Screw Conical Mixer (CE Approved)

1. 概述( Description )：
双螺旋锥形混合机在化工、医药、食品、建材等领域广泛使用，可用于粉体与粉体的混合、粉体添加少量液体混合、粉体与颗粒的混合等工艺。

每批次处理能力1~20立方米
每批次处理物料0.5~15吨
所用混合时间在15~30分钟
设备材质可为316L、321、304、碳钢

Horizontal ribbon mixing machine is widely used in the chemical industry, medicine, food, building materials and other fields ,It can be used for powder and powder mixture, the powder to add a small amount of liquid mixing, powder and particle mixing process.

Each batch processing capacity of 1 to 20 cubic meters
0.5 to 15 tons of material per batch
Mixing time is between 15 and 30 minutes
Equipment material can be 316L, 321,304, carbon steel

2. 原理(Principle)：

螺旋的公、自转使物料在锥体内产生复合运动，主要产生四种运动形式：
The principle of this machine is the compound movements of the materials in the cone caused by the rotation and revolution of the screw.There are four type of movements:

2.1. 螺旋沿壁公转，使物料沿锥壁作圆周运动；
The revolution of the screw along the inner wall causes the materials produce circumferential movement along the wall.

2.2. 螺旋自转使物料自锥底沿螺旋上升；
The rotation of the screw causes the materials go up from the bottom of the screw spirally.

2.3. 螺旋的公、自转复合运动使一部分物料被吸收到螺旋圆柱面内同时受螺旋自转的离心力作用使螺旋圆柱面内的一部分物料向锥外体径向排放；
The rotation and revolution of the screw causes part of the materials absorbed to the cylindroid of the screw.Meanwhile under the action of the centrifugal force, part of the materials in the screw cylindroid are discharged radially.

2.4. 上升的物料受自身重力作用下降。四种运动在混合机内产生对流、剪切 、扩散、从而达到快速均匀混合的目的。
The materials gong up drops under the action of the gravity.These four types of movements causes the materials convection,shearing and diffusion inside the cone.Thus quick and uniform mixing can be achieved.

3. 应用范围(Scope of application)：

本机适用于医药、化工、食品、冶金、建材等行业的粉状、粒状物料的混合以及均质化。
This machine is suitable for pharmaceutical, chemical, food, metallurgy, building materials and other industries powder, granular material mixing and homogenization.

4、技术参数Technical parameter
