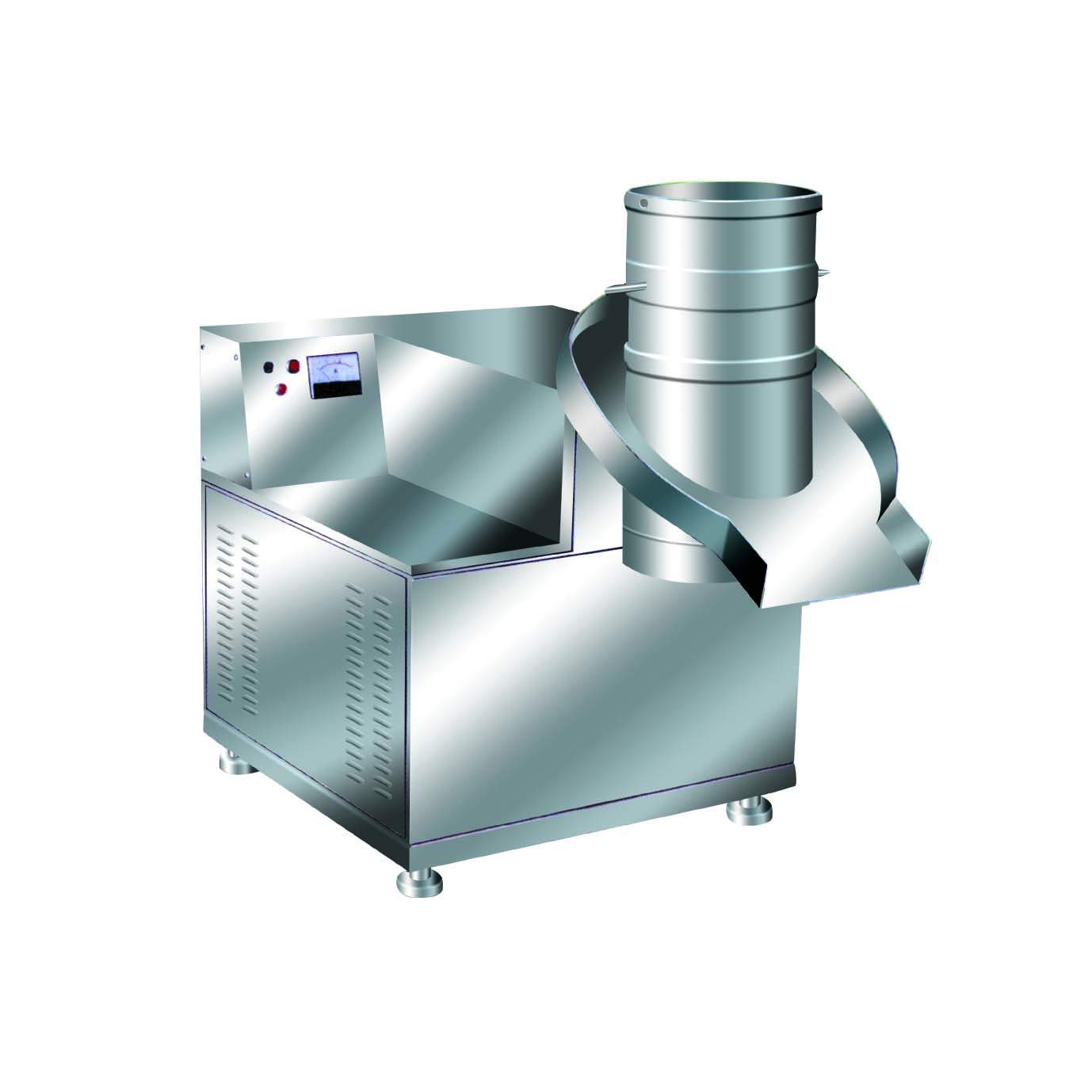

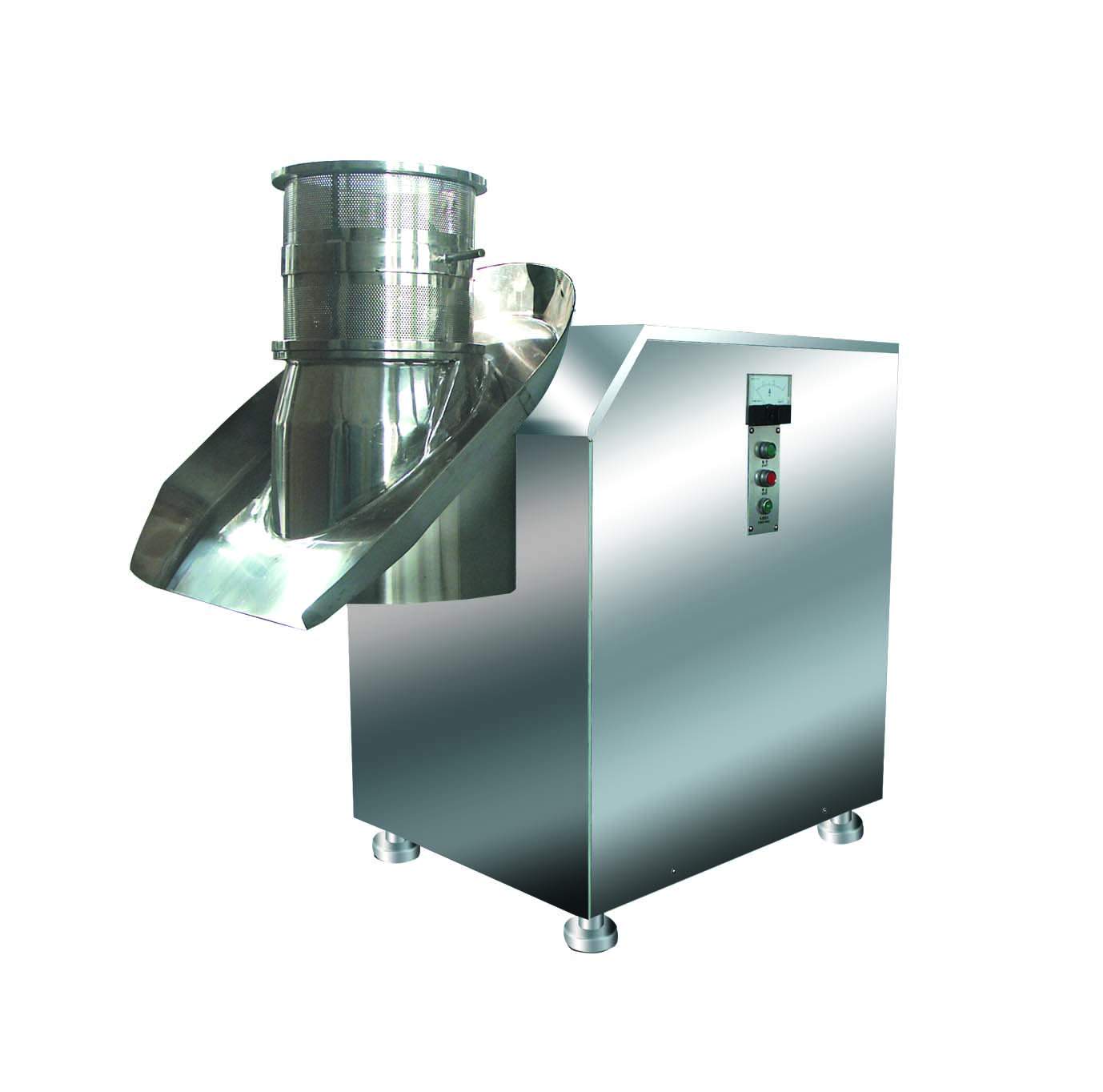

Model ZLB Revolving granulator

ZLB型旋转式制粒机
ZLB型旋转式制粒机



1,Scope of application

The machine is especially suitable for granulating pharm aceutical industry, foodstuff industry, chemical industry, solid drink industry and so on . It can make the stirred raw material into the needed granule . Especially, it is suitable for raw mat erials that have sticky adhesive.

2,Features

All parts contacted with raw material in this machine are m -ade of stainless steel . Its appearance is beauty and neat and its structure is compact . Its efficiency is high and the granule is beauty. Its discharge is automatic. Therefore it can avoid the damaged conditions caused by manual operation. It is suitable for in line production too .



3,Technical Parameter

Size of miling knife(mm)
250
300B
30D
Diameter of granules (mm)

2-2.2

It may be in accordance with the requirements of customers

2-2.2

It may be in accordance with the requirements of customers

2-2.2

It may be in accordance with the requirements of customers

Overall dimensions (mm)
700 ×540 ×1300
800 ×640 ×1300
1300 ×800 ×1200
Power of motor (Kw)
3
4
7.5~6
Weight (Kg)
350
400
780
Production capacity(Kg/h)
100~200
140~400
300~600

Notes:because the raw materials existin difference ,the output in the table is for reference only.
