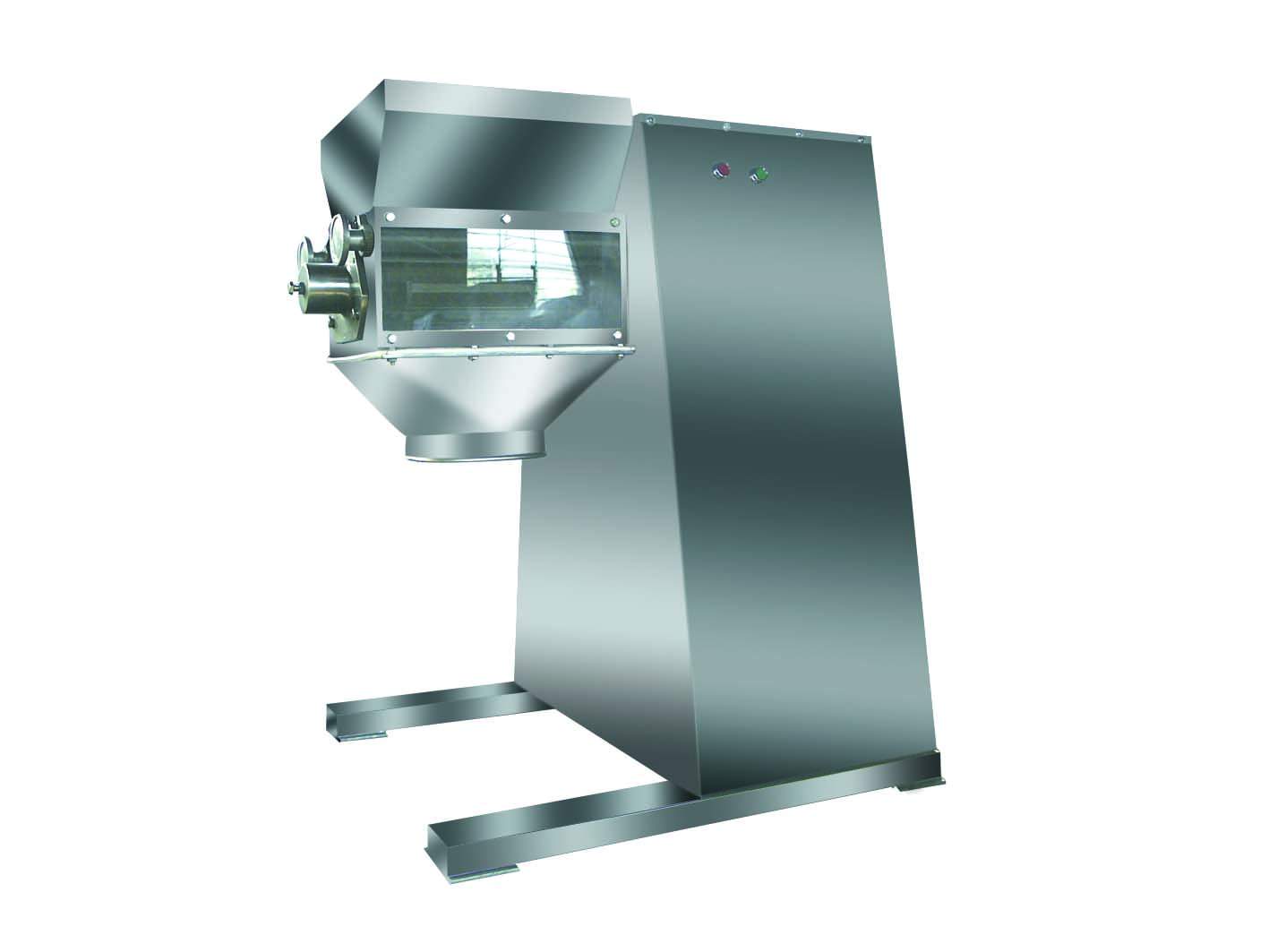

Model YK160 granulator

ZLB型旋转式制粒机



1,Main application and its featrues

This machine is special equipment. Under the action of clock wise and counter clockwise rotation of roller,damp powder mixtu -re will be forced to pass through sieve and then become granule. ModelC is a heavy type and suitable for raw materials having stic -ky viscosity. This machine is mainly suitable for pharmaceutical industry , chemical industry and foodstuff industry to make granule with different specifications . After it is dried through baking , it can be pressed it to form all kinds of shaped products.It can also be used for drying block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appe -arance is beauty. Its cleaning is very convenient . Its operation is very simple. Its energy consumption is very low.

2,Technical Parameter

Model
Model A,B
Model C(heavy type)
Productive capacity (Kg/h)
100~200
150~300
Power of motor(Kw)
2.2
3
Revolution of roller (rpm)
65
65
Swing angle
360 °
360 °
Diameter of roller (mm)
160
160
Weight(Kg)
Approximate 300
450
Overall dimensions(mm)
1150 ×680 ×1150
1260 ×570 ×1150



Notes:because the raw materials exist in difference ,the output in the table is for reference only.
