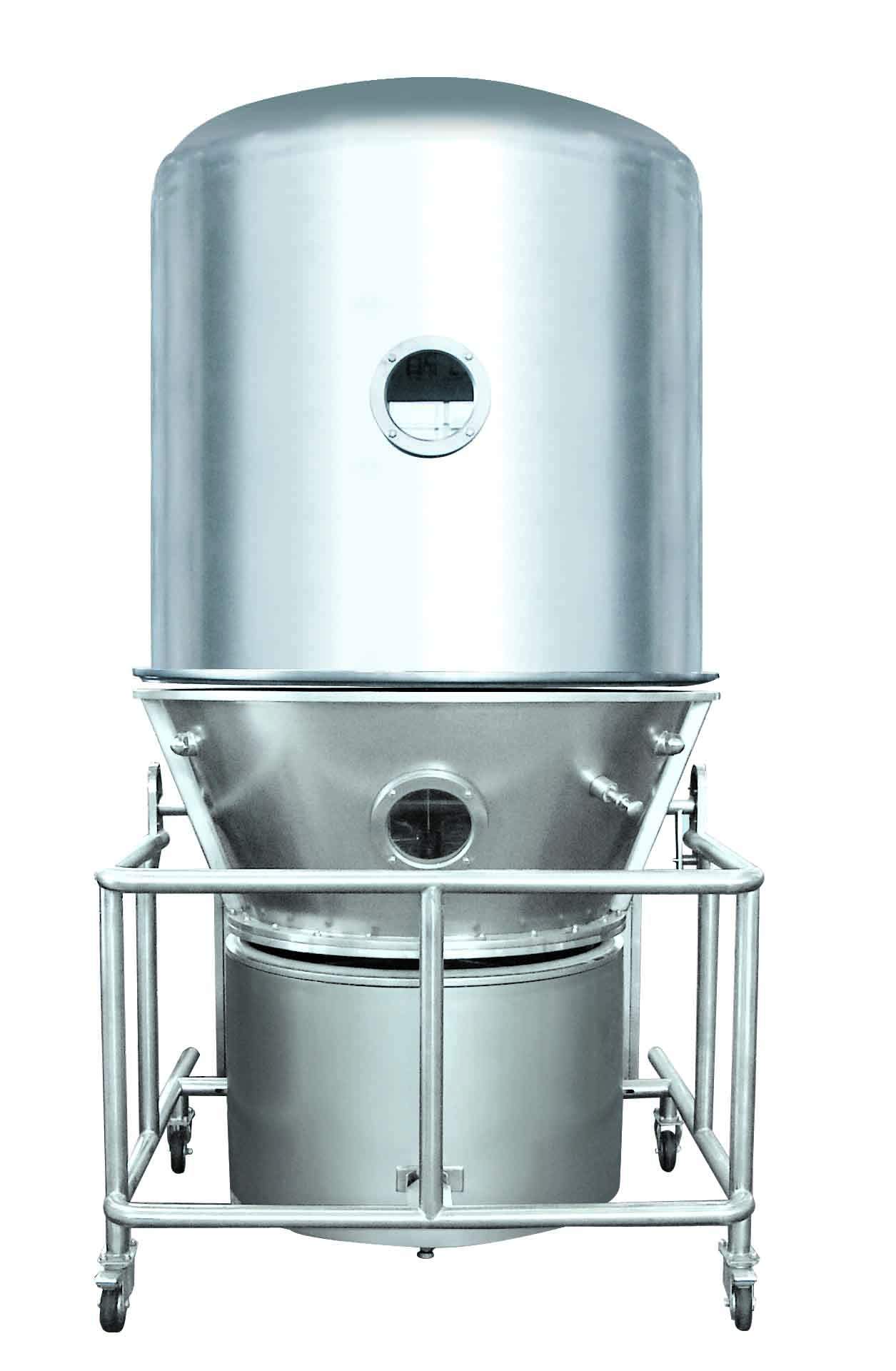

GFG series high effeciency fluidized dryer

GFG系列高效沸腾干燥机



1,Scope of application

◆ Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing;

◆ Suitable for drying humidity block or powder raw material in the fieldssuch as pharmaceutical, foodstuff , feed, chemical industries and so on;

◆ The raw material is large in granule and small in block and having adhesiveproperty;

◆ Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.

2,Principles

When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material,. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the material is dried quickly.

3,Featurs

◆ The structure of fluidized bed is round so as to avoid dead corner;

◆ Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow;

◆ The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too;

◆ It is operated at the conditions of negative pressure and seal.The air is filtered.Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP;

◆ The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for each batch.



4,Technical parameter

Item
Unit
Type
60
100
120
150
200
300
500
Production capacity
Kg/batch
30~60
60~100
80~120
100~150
120~200
200~300
300~500
Cintainer of raw material Dim
mm
1000
1000
1200
1200
1400
1600
1800
Volume
L
220
330
420
500
670
1000
1500
Fan Air volume
m3/h
2361
3488
4000
4901
6032
7800
10800
Air Pressure
mmH2O
594
533
533
679
787
950
950
Power
Kw
7.5
11
15
18.5
22
30
45
Stirring power
Kw
0.55
0.55
0.55
0.55
0.75
0.75
1.1
Stirring speed
rpm
11
Cnsumption of steam
Kg/h
141
170
210
240
282
366
451
Time of operation
min
15~45
Hight of main machine Square
mm
2750
2850
2850
2900
3100
3300
3650
Round
mm
2700
2900
2900
2900
3100
2600
3850
