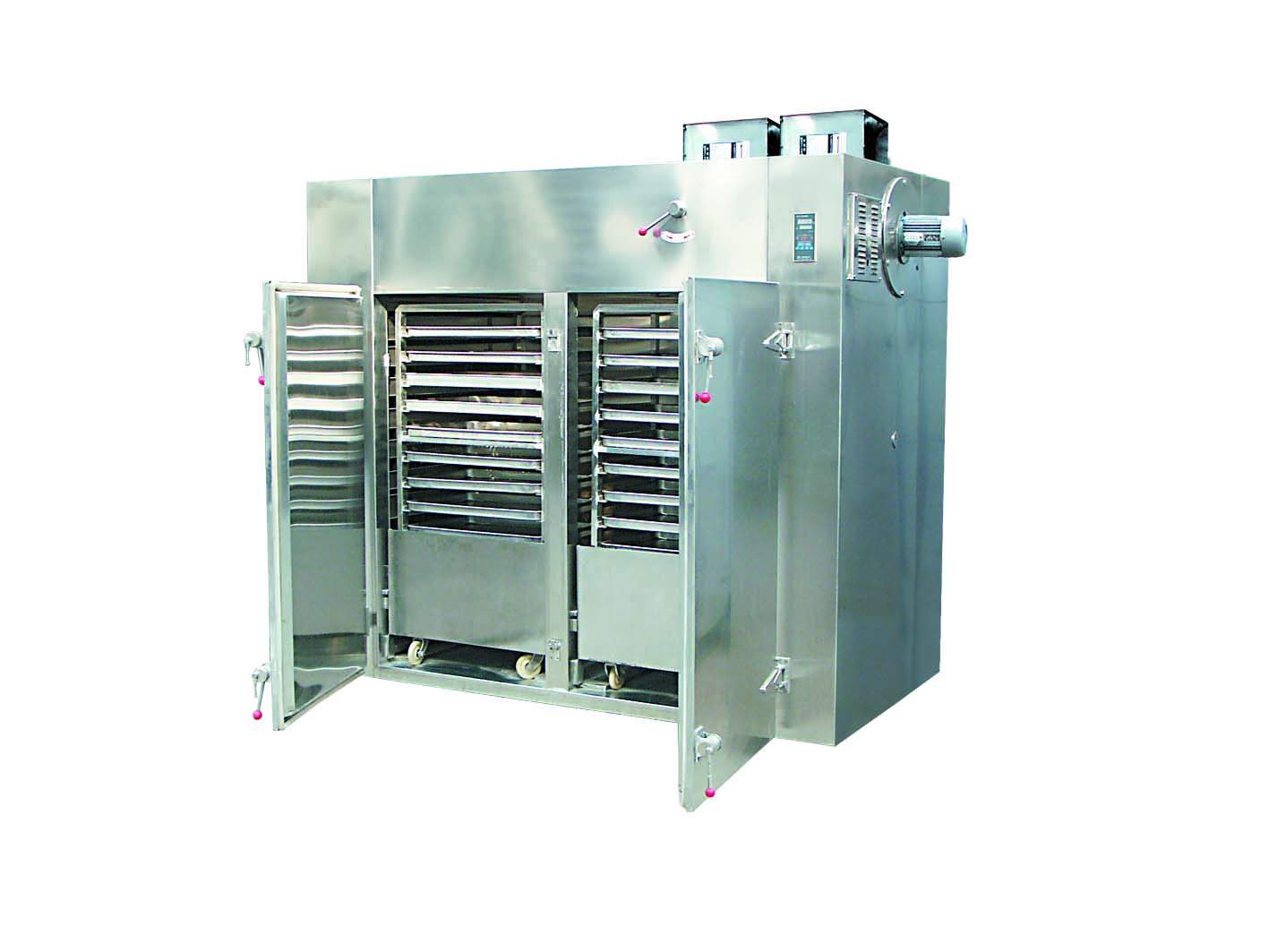

CT CT-C series hot-las-air circulating drying oven

CT,CT-C series oven



1,Descriptions

CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from3 7% of the traditional drying oven to 35 45% of the present one . The highest heat efficiency can reach 50% . The successful design of CT-Chot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad . In order to save a large quantity of the energy in out country , in order to enhance the economic results of the enterprises, in 1990,the medicine management bureau of the State issued the industry standard and the uniform type is RXH.

2,Applications

It is suitable for heating and solidificating , drying and dehydrting of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products,light industry and heavy industry such as raw material medicine,Chinese traditional medicines, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff,dehydrated vegetables,dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.



3,Main technical parameters and relevant explanations

1.The heat source can be steam , heat conductive oil , electricity or far

infrared. Customers can select one of them in accordance with practical

conditions.

2.Temperature for steam:140 -150 .

3.Temperature for electricity or far infrared:350 .

4.There are automatic and computer control system for customers to choose.

5.The normal steam pressure:0.2-0.8MPa.

6.Power for electricity heat source will be 15KW calculated as Model I. Practical power to be used will be 5-8kw/h.

7.If any special requirements, please indicate it when order.

8.Parameters for non-standard ovens shall be discussed separately according to different conditions.

9.If the operating temperature is higher than 14 or lower then 60 , please indicate it when order.

10.The drying trollies and trays are of a standard size and can be exchanged with one another.

11.The size of drying tray:4604045mm.



4,Featurs

Most of hot air is circled inside the oven. The heat efficiency is high and the energy source can be saving.

Using enhanced ventilation and adjustable air separating boards . It can make materials dried uniformly . The heat source can be steam, heat conductive oil, electricity or far infrared.

The machine makes little noise and can be operated stably. The temperature can be controlled automatically and the installation and maintenance are all very convenient.

With wide scope of application, it is suitable for drying varieties of materials. So it is a current type of drying equipment.

5,Featurs

Number
Model
YY0026-90Field standard Model
Technical data
Accessiories
Total weight (Kg)
Evaporation(m2)
Efficient volume (m3)
drying capacity (Kg/lot)
Radiator area(m2)
Steam consumption(Kg/h)
Electric heating power (Kw)
Fan volume (m3/h)
Fan power (kw)
Temperature difference inside the oven ( )
Oveall dimensions (W*D*H)
Equipped drying cart(set)
Drying pallet to be equipped(pc)
Temperature automatic control box
1
CT-C-0
RXH-7-C
7.1
1.3
60
15
15
6-9
4510
0.45
1
1380*1200*2000
1
24
have
820
2
CT-C-
RXH-14-C
14.1
2.6
120
23
20
15
4510
0.45
2
2260*1200*2000
2
48
have
1580
3
CT-C-
RXH-27-C
28.3
4.9
240
48
40
30
9020
0.452
2
2260*2200*2000
4
96
have
1800
4
CT-C-A
RXH-27-C
28.3
4.9
240
48
40
30
9020
0.452
2
4280*1200*2270
4
96
have
1880
5
CT-C-
RXH-41-C
42.4
7.4
360
72
60
45
13530
0.453
2
2260*3200*2000
6
144
have
2100
6
CT-C-A
RXH-41-C
42.4
7.4
360
72
60
45
13530
0.453
2
3240*2200*2000
6
144
have
2210
7
CT-C-
RXH-54-C
56.5
10.3
480
96
80
60
18040
0.454
2
4280*2200*2270
8
192
have
2800
8
CT-
RXH-14-B
14.1
2.6
120
23
20
15
1414
1.1
2
2480*1200*2375
2
48
No
1220
9
CT-
RXH-27-B
28.3
4.9
240
48
40
30
5230
1.1
2
2480*2200*2348
4
96
No
1530
10
CT-
RXH-41-B
42.4
7.4
360
72
60
45
9800
2.2
2
3430*2200*2620
6
144
No
2110
11
CT-
RXH-54-B
56.5
10.3
480
96
80
60
9800
2.2
2
4460*2200*2620
8
192
No
2300
