W/BW series mixer

VHJ系列混合机

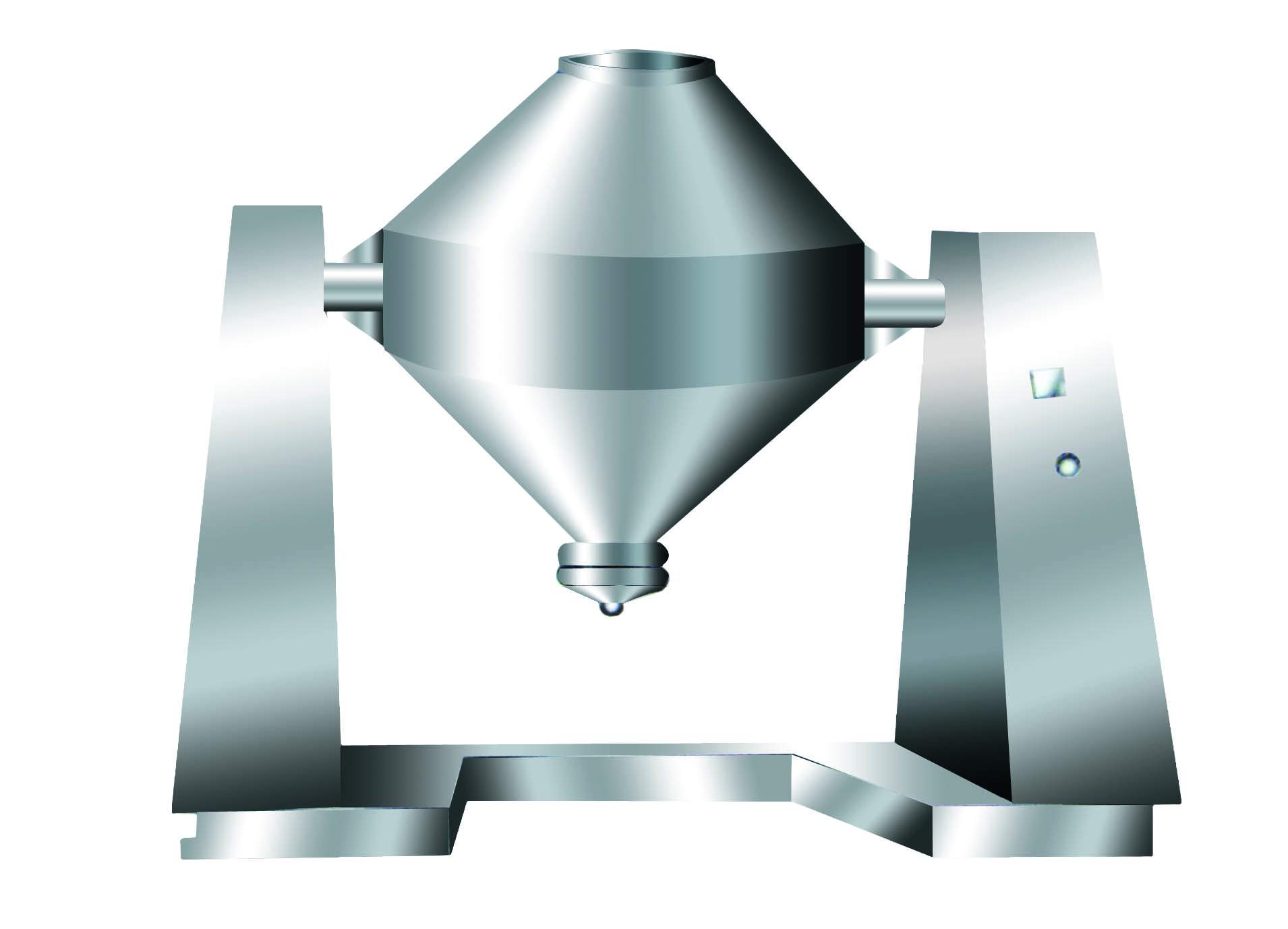

1,W series mixer

1.Applications

The mixer is suitable for mixing dry powdery or granule materials, Esp those of high fluidity in pharmaceutical or other industries.

2.Features

The mixing can be achieved efficiently and uniformly without dead corner.

3.Technical parameter

Type W-180 W-300 W-500 W-1000 W-1500 W-2000 W-2500 W-3000 W-4000
Total volume (m3) 0.18 0.3 0.5 1.0 1.5 2.0 2.5 3.0 4.0
Production capacity (Kg/次) 40 60 100 200 300 400 500 600 800
Mixing time (min) 4-8 6-10 6-10 6-10 6-10 6-10 6-10 6-10 6-10
Rotating speed of cylinder (rpm) 12 12 12 12 12 12 12 7.8 7.8
Power(Kw) 1.1 1.1 2.2 4 4 7.5 7.5 7.5 11

Overall size

L*W*H(mm)

1400×

800×1850

1685×

800×1850

1910×

800×1940

2765×

1500×2370

2960×

1500×2480

3160×

1900×3500

3386×

1900×3560

4450×

2200×3600

4750×

2500×3680

Rotation height (mm) 1850 1850 1950 2460 2540 3590 3650 3700 3730
Weight(Kg) 280 310 550 810 980 1500 2150 2500 3200

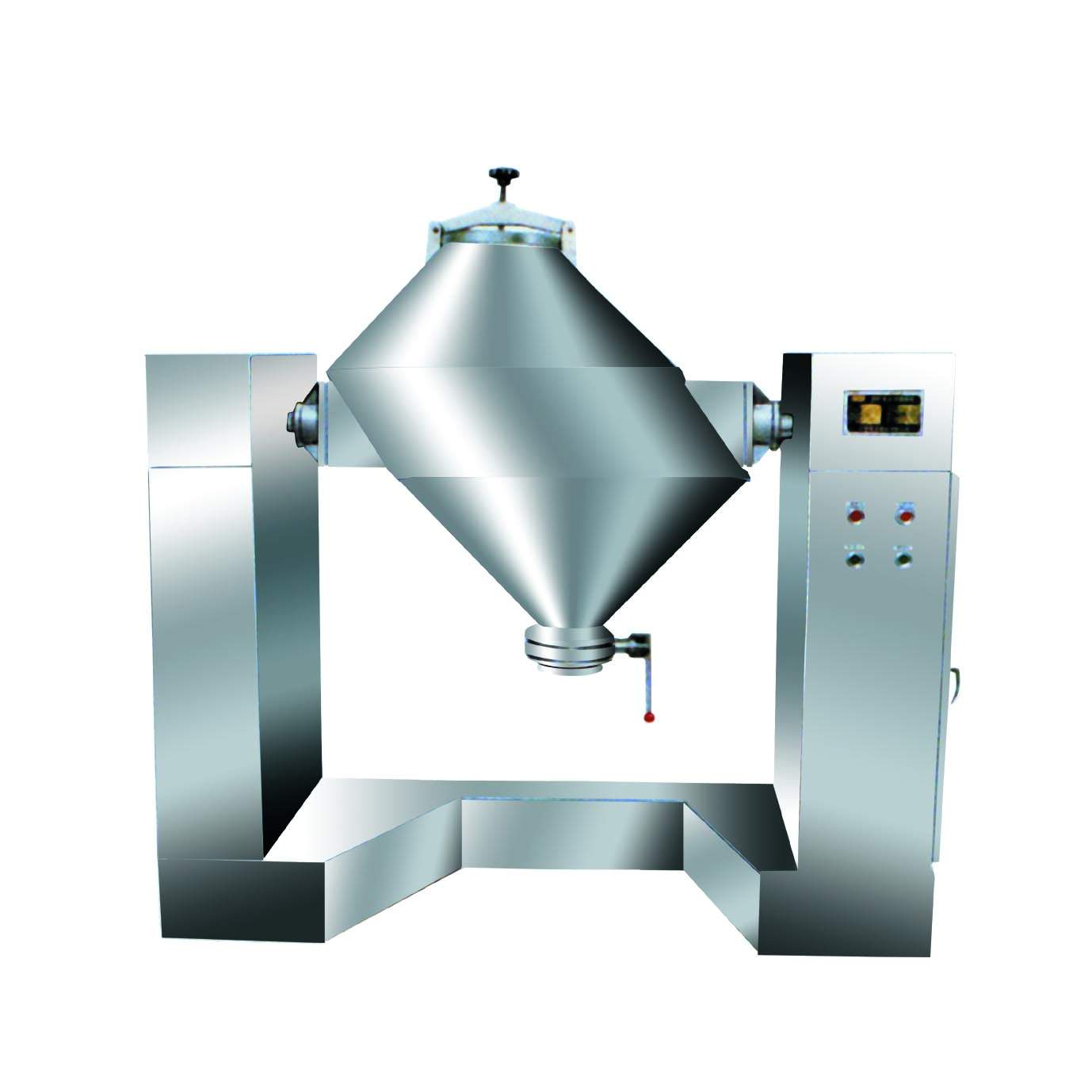

2,BW series mixer

1.Applications

The mixer is suitable for mixing dry powdery or granule materials,Esp those of high fluidity in pharmaceutical or other industries.

2.Features

With unique structure of mixing cylinder and high mixing efficiency, this machine can achieve uniform mixing without any dead corner.

3.Technical parameter

Type BW-300 BW-500 BW-1000 BW-1500
Total volume (m3) 0.3 0.5 1.0 1.5
Production capacity (Kg/次) 60 100 200 300
Mixing time (min) 6-10 6-10 6-10 6-10
Rotating speed of cylinder (rpm) 12 12 12 12
Power(Kw) 1.1 2.2 4 4

Overall size

L*W*H(mm)

1850×

880×1850

2200×

1100×2000

2300×

1500×3000

3550×

1650×2550

Weight(Kg) 310 550 810 980
