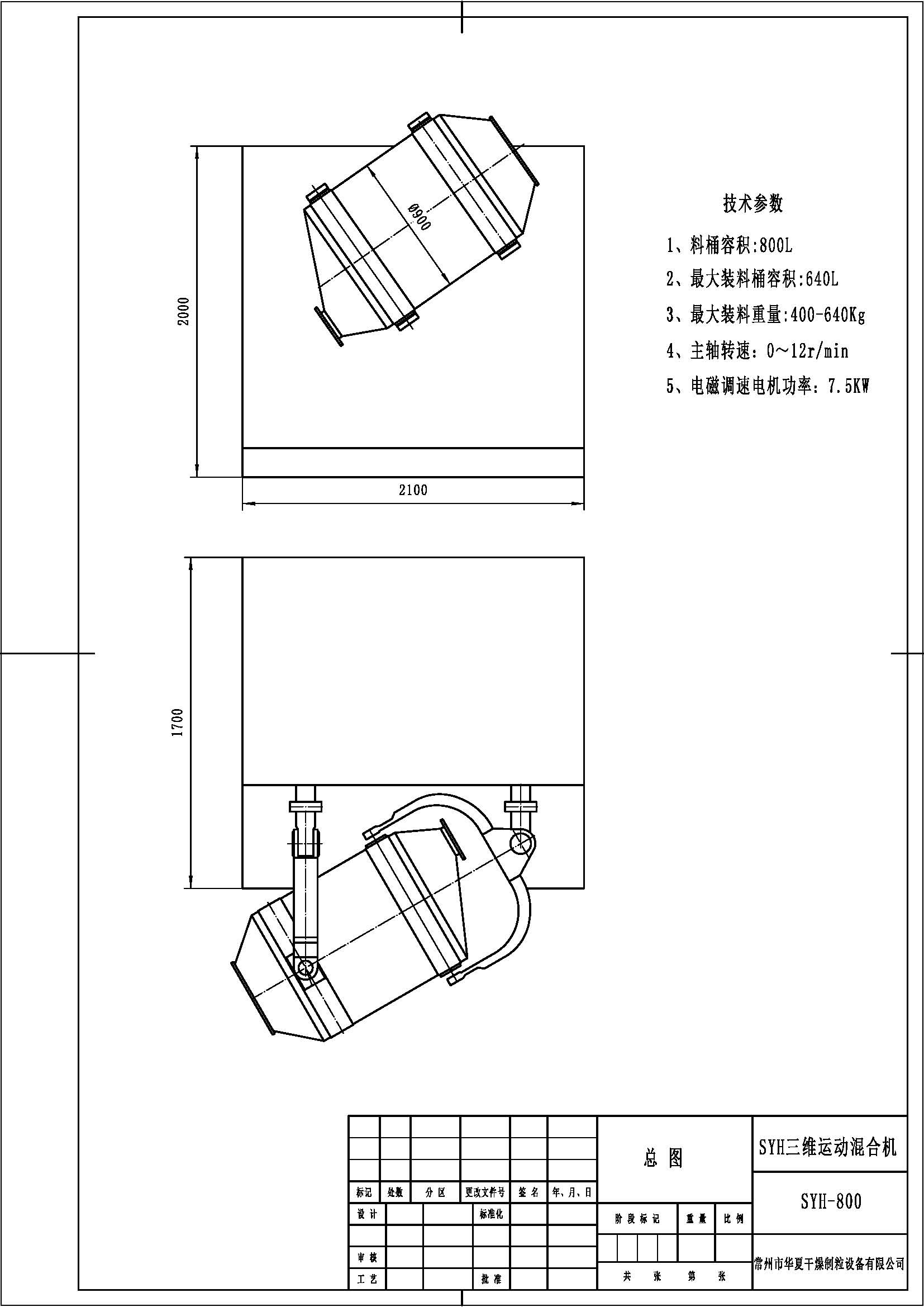

三维混合机(CE)
Three-dimensional Mixer
(CE Approved)
用途及特点
*SYH系列三维运动混合机为高效混合设备,可用于制药、食品、化工、轻工、机械、电子、矿冶、国防工业、科研等企事业单位手工艺粉状、粒状物料的高均匀度混合。
* 物料在混合过程中无离心力作用,无比重偏析及分层,积聚现象,各组份可在悬珠的重量配比下均匀混合,混合率达99%以上。
*装料系数高,可达到80%(普通混合机仅为40%左右)且混合时间短,是目前各种混合机中的一种较理想产品。
*设备结构紧凑,传动部采用无级调速(变频或电磁调速),操作十分方便。
*料筒各处为圆弧过渡,并经过精密抛光处理,达到GMP要求。
工作原理
SYH系列三维混合机的混合料桶通过二只Y型万向节悬装于主、从动轴端部,二只万向节在空间周而复始地作平移、转动和翻滚等复合运动。物料则在筒体内跟着作轴向、径向和环向的三维复合运动。筒内的多种物料相互流动、扩散、掺杂,最后呈均匀状态。
Uses and features
*SYH series three-dimensional motion mixer is a high-efficiency mixing device, which can be used for high uniformity mixing of powder and granular materials in the handicrafts of pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, defense industry, scientific research and other enterprises.
* The material has no centrifugal force in the mixing process, no specific gravity segregation and delamination, accumulation phenomenon, each component can be evenly mixed under the weight ratio of the suspension beads, the mixing rate is over 99%.
* High loading coefficient, up to 80% (ordinary mixer is only about 40%) and short mixing time, is an ideal product in various mixers.
* The equipment structure is compact, the transmission part adopts stepless speed regulation (frequency conversion or electromagnetic speed regulation), and the operation is very convenient.
* The barrel is circularly transitioned throughout, and is precision-polished to meet GMP requirements.
working principle
The mixing bucket of SYH series three-dimensional mixer is suspended on the ends of the main and driven shafts by two Y-joints, and the two universal joints perform complex motions such as translation, rotation and rolling in the space cycle. The material follows the axial, radial and circumferential three-dimensional composite motion in the cylinder. The various materials in the cylinder flow, diffuse, and dove with each other, and finally become uniform.
4、技术参数Technical parameter
型号Model |
SYH-1 |
SYH-5 |
SYH-15 |
SYH-50 |
SYH-100 |
SYH-200 |
SYH-400 |
SYH-600 |
SYH-800 |
SYH-1000 |
SYH-1200 |
SYH-1500 |
|
料筒容积Volume of Drum(L) |
1 |
5 |
15 |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
1200 |
1500 |
|
******装料容积Maximum Loading Volume (L) |
0.8 |
4 |
12 |
40 |
80 |
160 |
320 |
480 |
640 |
800 |
960 |
1200 |
|
******装料重量Maximum Loading Weight'(KG) |
0.5 |
2.4 |
7.5 |
25 |
50 |
100 |
200 |
300 |
400 |
600 |
700 |
900 |
|
主轴速度Main Shaft Speed (r/MIN) |
0-28 |
0-8 |
|||||||||||
电机功率Power (KW) |
0.12 |
0.25 |
0.37 |
1.1 |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
7.5 |
11 |
11 |
|
外形尺寸Mesurement |
L |
500 |
750 |
700 |
1400 |
1700 |
1800 |
2100 |
2400 |
2600 |
2650 |
2950 |
3100 |
W1 |
600 |
650 |
1000 |
1000 |
1200 |
1400 |
1800 |
2200 |
2380 |
2500 |
2650 |
2850 |
|
H |
450 |
450 |
700 |
1200 |
1500 |
1600 |
1950 |
2350 |
2500 |
2600 |
2750 |
3000 |
|
W2 |
500 |
550 |
650 |
850 |
1250 |
1350 |
1650 |
1750 |
2000 |
2100 |
2200 |
2250 |
|
整机重量Weight (kg) |
50 |
150 |
200 |
200 |
500 |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
3500 |
